CR2016 vs. CR2032: What are the Differences?

2023-12-18

Overview of CR2016 Battery

The CR2016 is a type of lithium button cell battery widely used in various small electronic devices. Here's an overview of its specifications, common applications, and considerations:

Specifications:

  • Chemistry: Lithium Manganese Dioxide (Li-MnO2)
  • Nominal Voltage: 3 volts
  • Diameter: Approximately 20.0 mm
  • Height: Approximately 1.6 mm
  • Capacity: Generally around 90 to 100 milliampere-hours (mAh)
  • Shelf Life: Can be stored for about 8 years under proper conditions
  • Operating Temperature Range: Typically from -30°C to 60°C (-22°F to 140°F)

Common Applications:

  1. Watches: Many wristwatches, particularly digital models, use CR2016 batteries due to their reliability and compact size.

  2. Calculators: Compact calculators in both professional and personal settings rely on CR2016 batteries for their low power consumption and longevity.

  3. Key Fobs: Car key fobs and access control devices often use CR2016 batteries, benefiting from their small profile and stable voltage.

  4. Medical Devices: Devices such as heart rate monitors, glucometers, and other small medical instruments make use of CR2016 batteries for reliable power.

  5. Small Electronics: A variety of miniature electronic gadgets, including LED lights, digital thermometers, and small toys, take advantage of CR2016 batteries for their power needs.

Considerations:

  1. Non-rechargeable: CR2016 batteries are non-rechargeable and must be replaced when depleted.

  2. Proper Disposal: Like all batteries, CR2016 batteries need to be recycled properly to minimize environmental impact.

  3. Safety Precautions: It's essential to handle these batteries with care, keeping them away from children and pets to prevent ingestion or other accidents.

  4. Technical Compatibility: When replacing batteries in a device, it's important to verify that the size, voltage, and chemistry of the replacement battery match the requirements of the device.

CR2016 batteries are widely available and are commonly found in drugstores, hardware stores, and electronics shops, making them easily replaceable when depleted. However, prudent usage, proper disposal, and adherence to safety guidelines are crucial for making the most of these reliable power sources while minimizing environmental impact.

How Long does CR2016 Run?

The operational lifespan of a CR2016 battery varies based on the specific device it powers, as well as the battery's overall capacity, power consumption of the device, and environmental conditions.

For the CR2016 battery, which typically has a capacity between 90 to 100 milliampere-hours (mAh), the runtime can be estimated in the following way:

  1. Calculate Power Consumption: Determine the average power consumption of the device powered by the CR2016 battery. This often involves consulting the device's technical specifications or documentation. If this information is not available, it may be estimated by considering the typical power consumption of similar devices.

  2. Estimate Runtime: Once the power consumption is known, the runtime of the CR2016 battery can be calculated by dividing the battery's capacity (in ampere-hours) by the device's average power consumption (in amperes). This provides an estimate of how many hours the battery can power the device before needing replacement.

As an example, if a particular device draws 1 milliampere of current, a CR2016 battery with a capacity of 100 milliampere-hours would theoretically last for approximately 100 hours.

It is important to remember that the actual runtime might vary due to factors such as variations in power consumption (e.g., due to different usage patterns like heavy use versus intermittent use) and the specific voltage characteristics of the battery during its discharge cycle. Additionally, as the battery depletes, its voltage drops, which can affect the operation of certain devices.

Consequently, for more accurate and precise estimates, especially for critical applications, it is recommended to periodically monitor the battery's performance and replace it based on the actual runtime experienced, rather than relying purely on theoretical calculations.

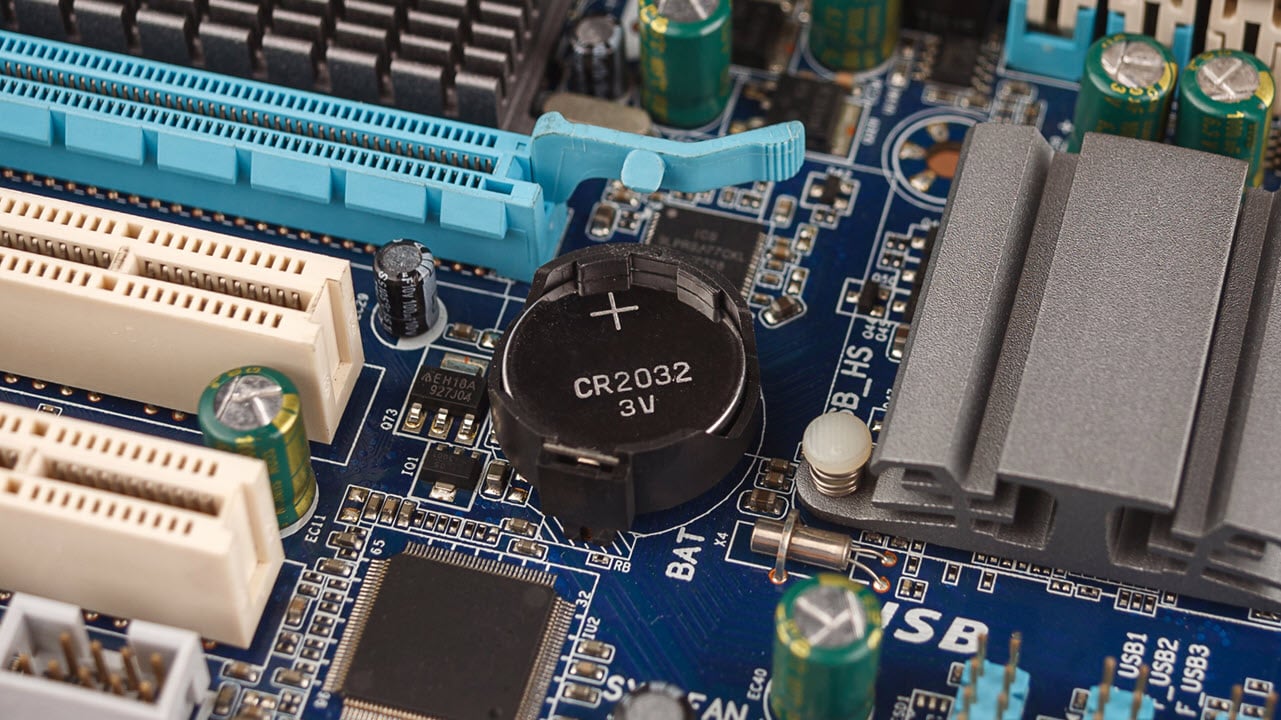

Overview of CR2032 Battery

The CR2032 is a widely used type of lithium button cell battery, known for its compact size and reliable power supply. Here's an overview of its specifications, common applications, and considerations:

Specifications:

  • Chemistry: Lithium Manganese Dioxide (Li-MnO2)
  • Nominal Voltage: 3 volts
  • Diameter: Approximately 20.0 mm
  • Height/Thickness: Approximately 3.2 mm
  • Capacity: Typically ranges from 200 to 240 milliampere-hours (mAh)
  • Shelf Life: Can often be stored for around 10 years under proper conditions
  • Operating Temperature Range: Typically from -30°C to 60°C (-22°F to 140°F)

Common Applications:

  1. Watches: Many wristwatches, especially digital and electronic models, rely on CR2032 batteries for their compact size and consistent power output.

  2. Calculators: Both basic and scientific calculators often utilize CR2032 batteries, benefitting from their low current drain and long shelf life.

  3. Key Fobs: Modern car key fobs, garage door openers, and access control devices frequently use CR2032 batteries for their reliable power supply.

  4. Fitness Devices: Small fitness gadgets like heart rate monitors and pedometers often rely on CR2032 batteries for their compact size and stable voltage.

  5. Small Electronics: A wide array of small electronic devices, such as remote controls, digital thermometers, and various sensors, use CR2032 batteries because of their suitable power output and size.

Considerations:

  1. Non-rechargeable: CR2032 batteries are non-rechargeable and need to be replaced once depleted.

  2. Proper Disposal: Used batteries should be recycled using proper channels to minimize environmental impact.

  3. Safety: As with all batteries, it's important to handle CR2032 batteries with care, keep them away from children and pets, and avoid ingestion or mishandling.

  4. Technical Compatibility: When replacing batteries in a device, it's essential to ensure that the replacement battery matches the size, voltage, and chemistry requirements of the device.

CR2032 batteries are generally readily available and are commonly found in stores that carry batteries, electronics, and hardware. Nonetheless, prudent usage, safe disposal, and adherence to technical specifications are vital for maximizing the utility of these dependable power sources while minimizing environmental impact.

How Long does CR2032 Run?

The operatinal lifespan of a CR2032 battery can vary widely based on several factors including the specific application, the device's power demands, and the environmental conditions in which the battery is used.

The CR2032 typically has a capacity in the range of 200 to 240 milliampere-hours (mAh). To estimate its runtime:

  1. Determine Power Consumption: First, you need to know the average power consumption of the device using the CR2032 battery. This information can typically be found in the device's technical specifications or documentation. If not available, it might be estimated based on the typical power consumption of similar devices.

  2. Calculate Runtime: Using the known or estimated power consumption, you can then calculate the runtime of the CR2032 battery by dividing the battery's capacity (in milliampere-hours) by the device's average power consumption (in milliamperes). This should provide an estimate of how many hours the battery can power the device before needing replacement.

For example, if a particular device draws 1 milliampere of current, a CR2032 battery with a capacity of 220 milliampere-hours would theoretically last for approximately 220 hours.

It's important to take into account that the actual runtime can vary due to a number of factors such as variations in power consumption (e.g., due to different usage patterns), the specific voltage characteristics of the battery during its discharge cycle, and the impact of environmental conditions.

For accurate estimations, especially for critical applications, it's recommended to monitor the battery's performance and replace it based on the actual runtime experienced, rather than relying purely on theoretical calculations.

The Differences Between CR2016 and CR2032 Battery

The CR2016 and CR2032 are both widely used coin cell batteries, but they differ in size, capacity, and typical applications. Here's a breakdown of the main differences between the two:

CR2016 Battery:

  1. Size: The CR2016 has a diameter of 20 mm and a thickness of 1.6 mm.
  2. Voltage: It provides a nominal voltage of 3 volts.
  3. Capacity: Typically has a capacity ranging from 90 to 120 milliampere-hours (mAh).
  4. Chemistry: Typically uses lithium manganese dioxide (Li-MnO2) chemistry.
  5. Typical Use: Commonly found in applications such as small electronic devices including wristwatches, calculators, key fobs, and some medical devices.

CR2032 Battery:

  1. Size: The CR2032 has a diameter of 20 mm and a thickness of 3.2 mm.
  2. Voltage: It provides a nominal voltage of 3 volts.
  3. Capacity: Typically has a higher capacity ranging from 200 to 240 milliampere-hours (mAh).
  4. Chemistry: Like the CR2016, it typically employs lithium manganese dioxide (Li-MnO2) chemistry.
  5. Typical Use: Commonly utilized in applications that require slightly higher capacity and power, such as small electronic devices including wristwatches, calculators, key fobs, and medical devices.

Differences:

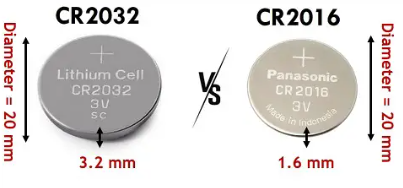

  • Size: The primary difference between the two batteries is their thickness. The CR2032 is 3.2 mm thick, while the CR2016 is 1.6 mm thick.

  • Capacity: The CR2032 typically has a higher capacity compared to the CR2016 due to its larger physical size, meaning it can generally provide more power over a longer period.

  • Applications: While both batteries are utilized in similar types of low-power devices, the CR2032, with its higher capacity, is often used in devices that may require sustained power over longer periods compared to the CR2016. However, they are often used interchangeably depending on the specific requirements of the device and its battery compartment.

When choosing between the CR2016 and CR2032 for a specific application, it's important to consider the device's compatibility with each size, and the power requirements of the device given the differences in capacity between the two batteries. Always consult the device's manual or specifications to determine the appropriate battery type.

CR2016 vs. CR2032 Batteries: Comparison Table

Certainly, here's a comparison table outlining the key differences between CR2016 and CR2032 batteries:

Characteristic CR2016 CR2032
Diameter 20 mm 20 mm
Thickness 1.6 mm 3.2 mm
Nominal Voltage 3 volts 3 volts
Typical Capacity 90-120 mAh 200-240 mAh
Common Applications Watches, calculators, key fobs, small medical devices Watches, calculators, key fobs, small medical devices
Size Thinner Thicker
Capacity Lower Higher
Duration Shorter life span Longer life span

These batteries are similar in terms of diameter and their nominal voltage, however, the primary differences lie in their thickness and capacity. The CR2032 is thicker and typically provides a higher capacity compared to the CR2016. When deciding between the two, it's important to consider the specific requirements of the device, including physical constraints, current draw, and duration of use.

CR2016 vs. CR2032: Are they Interchangeable?

CR2016 and CR2032 batteries share the same diameter of 20mm, but the CR2032 is thicker at 3.2mm, whereas the CR2016 is thinner at 1.6mm. While CR2016 and CR2032 batteries might fit into the same battery compartment due to their identical diameter, they are not interchangeable without potential issues.

  • CR2016 in a CR2032 slot: If a device requires a CR2032 and a CR2016 is used instead, there's a chance the CR2016 might not make proper contact due to its thinner build. This could lead to intermittent operation or complete failure of the device.

  • CR2032 in a CR2016 slot: Conversely, if a device requires a CR2016 and a CR2032 is used instead, the thicker CR2032 battery might not fit or could cause damage to the device's battery compartment due to its larger size.

Always consult the device's manual or specifications to determine the appropriate battery type. Using the incorrect battery can lead to potential safety hazards, device malfunctions, or damage. If you are uncertain, it's best to use the battery recommended by the manufacturer.

CR2016 Battery Equivalents

The CR2016 battery is a popular lithium coin cell that's used in various small electronic devices. If you're looking for equivalents to the CR2016, there are a few alternatives, especially if the exact model isn't available. Here are some equivalents and alternatives to the CR2016 battery:

  1. DL2016: This is a common equivalent to the CR2016. It also has a diameter of 20mm, a thickness of 1.6mm, and a voltage of 3V.

  2. ECR2016: This is another equivalent to the CR2016. It shares the same size and specifications, making it suitable for substitution.

  3. BR2016: This is a lithium button cell equivalent to the CR2016 with the same dimensions and voltage.

  4. LM2016: Another designation for a lithium manganese dioxide coin cell, equivalent to the CR2016.

  5. KCR2016: Sometimes this designation is also used by manufacturers and is equivalent to the CR2016.

When selecting an equivalent, it's essential to match the size, chemistry, and voltage to ensure proper functionality in your device. Always confirm compatibility with the device's specifications before using an equivalent.

CR2032 Battery Equivalents

The CR2032 battery, a widely used lithium coin cell, has several equivalents and alternatives available. When looking for substitutes for the CR2032, it's crucial to ensure that the chosen alternative matches the size, voltage, and chemistry of the original battery. Here are some equivalents to the CR2032:

  1. DL2032: DL2032 batteries are direct equivalents to CR2032 batteries in terms of size, voltage, and chemistry. These are widely available and commonly used as substitutes.

  2. ECR2032: Another equivalent of the CR2032, featuring the same dimensions and voltage, making it a suitable alternative.

  3. BR2032: This is also a direct equivalent to the CR2032, with similar specifications and dimensions.

  4. KL2032: Often used as an equivalent to the CR2032, this battery shares the same size, voltage, and chemistry.

  5. LM2032: Like the others listed here, the LM2032 is a suitable equivalent to the CR2032.

These equivalents can generally be used interchangeably, but it's always wise to verify compatibility with the specific device for which the battery is intended. Additionally, when using an equivalent, ensure that the alternative battery comes from a reputable manufacturer to guarantee quality and performance.

CR2016 vs. CR2032: Similarities

The CR2016 and CR2032 batteries, despite their differences, also share several similarities:

  1. Chemistry: Both the CR2016 and CR2032 batteries typically use lithium manganese dioxide (Li-MnO2) chemistry. This chemistry provides a relatively high energy density and a long shelf life, which is ideal for low-drain devices.

  2. Voltage: Both batteries provide a nominal voltage of 3 volts. This voltage is common in many small electronic devices, and their compatibility in this regard makes them suitable for similar types of applications.

  3. Common Applications: Both batteries are used in similar types of small, low-power electronic devices. They are commonly found in wristwatches, calculators, key fobs, small remote controls, medical devices, and various other compact electronic gadgets.

  4. Diameter: The physical diameter of both batteries is the same, at 20mm. This means that in terms of the width, the batteries are interchangeable in devices that accommodate the 20mm diameter.

These shared characteristics make the CR2016 and CR2032 batteries suitable for a range of comparable applications. However, it's important to note that while they share similarities, their differences in thickness and capacity mean that they are not entirely interchangeable without potential issues, as I mentioned previously.

Conclusion

In conclusion, the CR2016 and CR2032 batteries share several similarities: both typically use lithium manganese dioxide chemistry, providing a nominal voltage of 3 volts, and are often used in similar types of small, low-power electronic devices. They also share a common diameter of 20mm. These commonalities make them suitable for a range of comparable applications. However, it's essential to recognize that their differences in thickness and capacity mean that they are not entirely interchangeable, and using them interchangeably in devices without checking the specifications could lead to potential issues.
