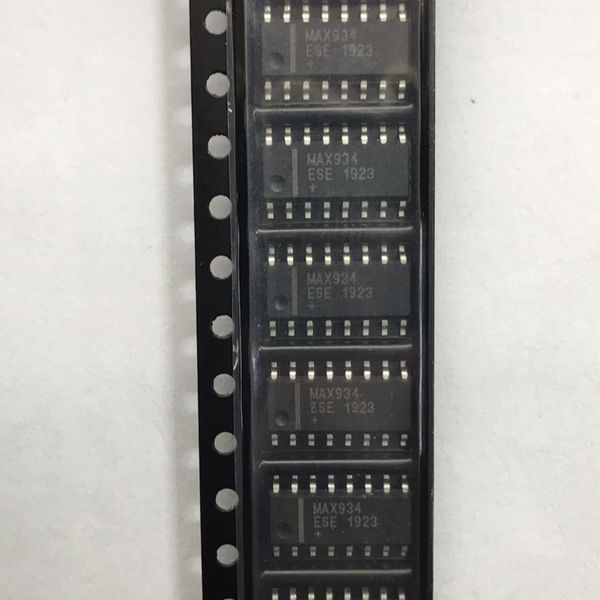

The MAX934ESE is an integrated circuit (IC) manufactured by Maxim Integrated. It is a quad comparator with an internal reference voltage. Here are the details:
- Manufacturer: Maxim Integrated
- Part Number: MAX934ESE
- Type: Quad Comparator with Internal Reference
- Package: 16-SOIC (Small Outline Integrated Circuit package with 16 pins)
Key features and applications of the MAX934ESE:
- Quad Comparator: The MAX934ESE incorporates four independent comparators within a single package, simplifying designs requiring multiple comparisons.
- Internal Reference: This comparator IC is equipped with an internal reference, providing a stable voltage level for comparison, reducing the need for external components.
- Versatile Package: The 16-SOIC package format ensures compatibility with a wide range of applications, offering ease of use and integration into circuit designs.
Applications for the MAX934ESE quad comparator with internal reference could include:
- Analog Signal Monitoring: Used for monitoring multiple analog signal levels and generating appropriate digital outputs based on comparisons.
- Threshold Detection: Employed for identifying signal thresholds in various sensor and monitoring systems.
- Mixed-Signal Processing: Integrated into mixed-signal processing applications requiring multiple comparison functions.
Always refer to the most recent datasheet and application notes to ensure that the MAX934ESE aligns with the specific requirements of your intended application, as these resources will provide detailed specifications and guidelines for usage.
