What is a 10k Resistor? 10k Ohm Resistor Color Code

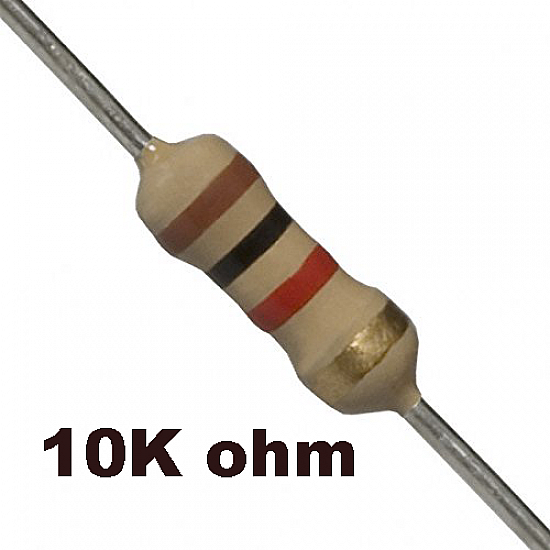

What is a 10K Resistor?

A 10K resistor refers to a resistor with a resistance value of 10,000 ohms. The "K" in 10K represents the metric prefix "kilo," which denotes a multiplication factor of 1,000. Therefore, a 10K resistor has a resistance 10,000 times greater than the base unit of resistance, which is the ohm.

Resistors are electronic components used to impede the flow of electric current in a circuit. They are designed to have a specific resistance value in ohms. The resistance value determines how much the resistor limits the flow of current. In the case of a 10K resistor, it restricts the current in a circuit more than a lower resistance value, such as a 1K (1,000 ohms) resistor.

Resistors are widely used in electronics for various purposes, including current limiting, voltage division, and signal conditioning. They come in different power ratings, physical sizes, and tolerances. The color code or numerical marking on the body of the resistor indicates its resistance value and tolerance so that it can be easily identified and used in circuits.

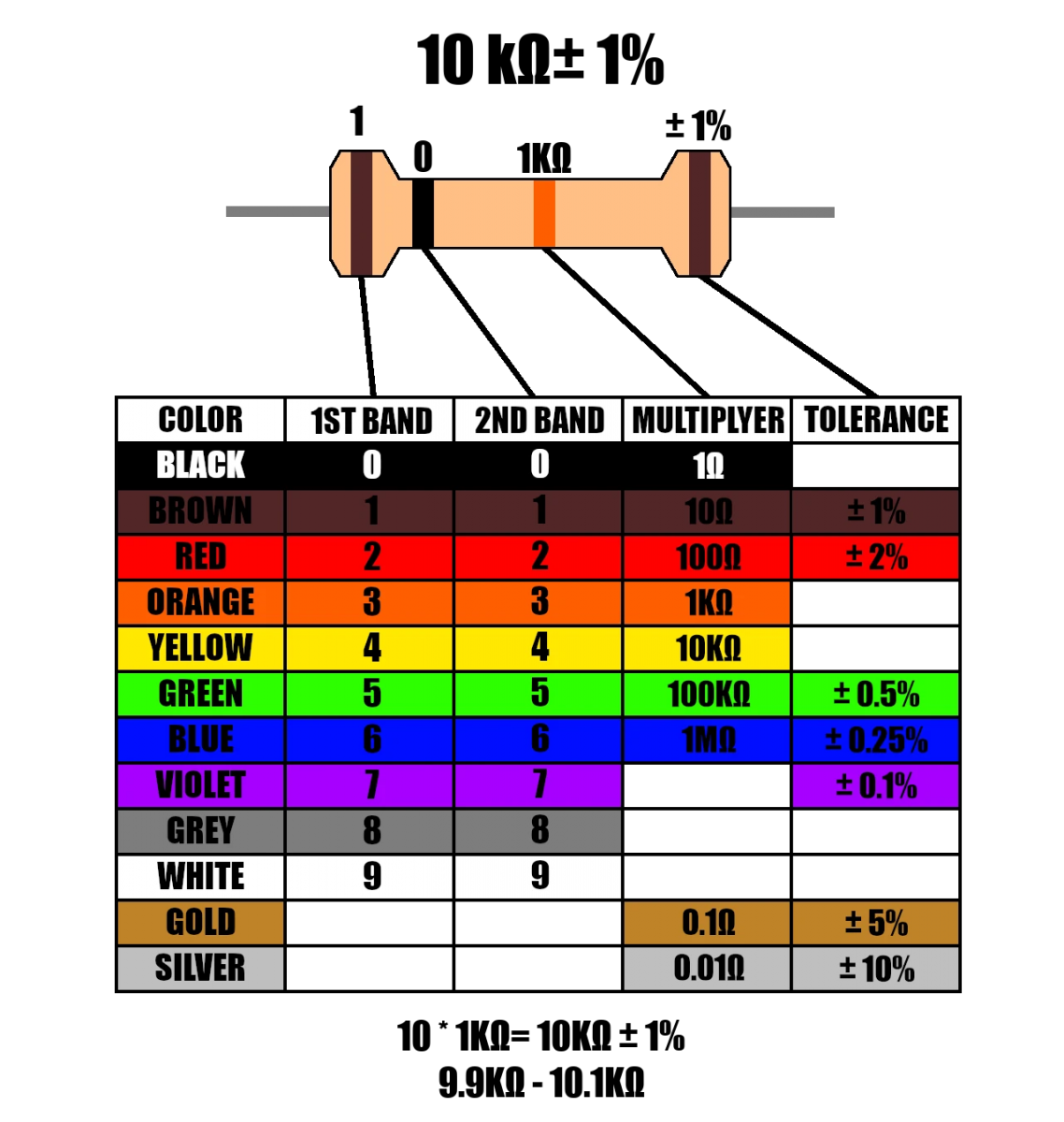

10K/10k Ohm Resistor Color Code

The color code for a 10K resistor, as per the standard 4-band resistor color code system, is:

Brown, Black, Orange, Gold

Each color band represents a specific digit or multiplier to determine the resistance value of the resistor. Let's break down the color code:

1st Band (1st significant digit): Brown = 1 2nd Band (2nd significant digit): Black = 0 3rd Band (Multiplier): Orange = 1,000 4th Band (Tolerance): Gold = ±5%

Putting it all together, the 10K resistor has a resistance value of 10,000 ohms (+/- 5% tolerance).

How to Read Resistor Color Code?

To read a resistor color code, you need to understand the standard 4-band color code system. Here are the steps to read the color code:

Step 1: Identify the color bands:

• Most resistors have four color bands. Sometimes, 5-band and 6-band color codes are used for high-precision resistors or special applications.
• The first three bands represent the significant digits of the resistance value, and the fourth band represents the tolerance.

Step 2: Determine the digit associated with each color band:

• Use a resistor color code chart or table to associate each color with its corresponding digit or value.

Step 3: Find the resistance value:

• Read the colors from the left to the right.
• The first and second color bands represent the significant digits.
• The third color band represents the multiplier (number of zeros).
• Combine the significant digits with the multiplier to get the resistance value.

Step 4: Determine the tolerance:

• The color of the fourth band represents the tolerance of the resistor.
• Common tolerance values include ±1%, ±5%, ±10%, and so on.
• Gold or silver bands indicate a tighter tolerance.

Step 5: Check for additional bands (if applicable):

• In some cases, resistors may have more than four bands, including a fifth and sixth band.
• The fifth band represents the temperature coefficient (PPM/°C), and the sixth band represents the reliability or voltage coefficient.

By following these steps, you can read the color code on a resistor and determine its resistance value and tolerance.

How To Read the 10K Resistor Color Code

To read the color code on a 10K resistor, you can follow these steps:

Step 1: Identify the color bands:

• Locate the four color bands on the resistor.
• The first three bands represent the significant digits of the resistance value, and the fourth band represents the tolerance.

Step 2: Determine the digit associated with each color band:

• Use a resistor color code chart or table to determine the value associated with each color band.

• Here is a breakdown of the color code for a 10K resistor:

  • First band (1st significant digit): Brown = 1
  • Second band (2nd significant digit): Black = 0
  • Third band (Multiplier): Orange = 1,000
  • Fourth band (Tolerance): Gold = ±5%

Step 3: Find the resistance value:

• Read the colors from left to right. In this case, it should be Brown, Black, Orange, Gold.
• Combine the values associated with the first three bands to determine the resistance value.
• For a 10K resistor, the resistance value is 10,000 ohms or 10 kilohms.

Step 4: Determine the tolerance:

• The color of the fourth band, Gold, represents the tolerance of ±5%.
• This means the actual resistance of the resistor can vary by 5% from the stated value.

By following these steps, you can read the color code on a 10K resistor and determine that its resistance value is 10,000 ohms with a tolerance of ±5%.

4-Band vs. 5-Band vs. 6-Band 10K Resistor Color Code

The standard way to represent the resistance value of a resistor is through a color-coded system. The most common standards are 4-band, 5-band, and 6-band color codes. Each band represents a specific value, and depending on the number of bands used, more information about the resistor can be conveyed, such as higher precision, temperature coefficient, or other specifications. Let's discuss each of them in the context of a 10K (10,000 ohms) resistor.

1. 4-Band Color Code for a 10K Resistor:

   • The 4-band color code system consists of the first two bands representing the significant digits, the third band indicating the multiplier, and the fourth band showing the tolerance.
   • Using the 4-band color code, a 10K resistor is represented as Brown, Black, Orange, Gold.
   • The resistance value is calculated as 10 * 1,000 ohms = 10,000 ohms with a tolerance of ±5%.

2. 5-Band Color Code for a 10K Resistor:

   • The 5-band system provides a higher level of precision or an additional specification such as a temperature coefficient.
   • When we have a 5-band code for a 10K resistor, the additional band after the tolerance band would provide the temperature coefficient. For example, Brown, Black, Black, Red, Brown represents a 10K resistor with 1% tolerance and a temperature coefficient of 100 ppm/°C.

3. 6-Band Color Code for a 10K Resistor:

   • The 6-band system provides even higher precision and often includes an additional specification.
   • In a 6-band code, additional information such as voltage coefficient or reliability grade might be included.

When using these color codes, it's crucial to consult the specific datasheet or reference document associated with the resistor to ensure accurate interpretation, especially when dealing with higher precision resistors.

Applications of 10k Resistor

A 10K resistor has various applications in electronic circuits due to its specific resistance value. Here are some common applications:

1. Voltage Dividers: A voltage divider circuit typically uses two resistors in series to divide a voltage signal. The 10K resistor can be utilized as one of the resistors in the divider network, allowing for precise voltage scaling according to the 10K-to-other resistor ratio.

2. Pull-Up or Pull-Down Resistors: In digital circuits, pull-up or pull-down resistors ensure that the voltage level of an input signal is well-defined when it is not actively driven. A 10K resistor can be employed as a pull-up or pull-down resistor to set the default state of a digital input or to prevent input float.

3. Timing Circuits: In combination with capacitors, resistors can create timing circuits such as RC oscillators and time delay circuits. The 10K resistor can be utilized as a timing component, affecting the charging or discharging time of the associated capacitor.

4. Current Limiting: A 10K resistor can be employed as a current-limiting resistor to control the flow of current in various components or parts of a circuit. By placing the resistor in series with a load, it restricts the amount of current passing through, preventing excessive current and protecting the related elements.

5. Biasing in Amplifier Circuits: In analog amplifiers, the 10K resistor can be part of a biasing network employed to establish the operating conditions of the amplifier stages. It helps set the appropriate voltage levels for transistors or operational amplifier inputs, enabling proper amplification.

6. Sensor Biasing: Some sensors, such as thermistors or light-dependent resistors (LDRs), require a biasing resistor to create a voltage divider or set the operating point. A 10K resistor can be used as a biasing resistor for such sensors.

These are just a few examples of the many applications of a 10K resistor in electronic circuits. The specific application will depend on the requirements of the circuit and the nature of the electrical components or signals involved.

Pull-Up and Pull-Down Resistors

Pull-up and pull-down resistors are commonly used in digital circuits to establish a known voltage level for an input signal when it is not actively driven by a signal source. They help ensure that the input is in a stable state and prevent it from floating or producing unpredictable results.

1. Pull-up Resistor:

   • A pull-up resistor is connected between an input pin and a high voltage level, typically the supply voltage (Vcc).
   • When the input signal is not actively driven or is disconnected, the pull-up resistor pulls the input voltage towards the high level, such as Vcc (logic '1').
   • It allows a weak current to flow through the resistor to Vcc, ensuring that the input is in a well-defined state.
   • When an external signal source actively drives the input to a low level (logic '0'), the low signal current can overcome the pull-up resistor and bring the input voltage to the low level.

2. Pull-down Resistor:

   • A pull-down resistor is connected between an input pin and a low voltage level, often the ground or common reference point.
   • When the input signal is not actively driven or is disconnected, the pull-down resistor pulls the input voltage towards the low level, such as ground (logic '0').
   • Similar to the pull-up resistor, the pull-down resistor allows a weak current to flow through it to the low level, ensuring a defined state.
   • When an external signal source actively drives the input to a high level (logic '1'), the high signal current can override the pull-down resistor and bring the input voltage to the high level.

The choice between using a pull-up or pull-down resistor depends on the application, the logic levels involved, and the circuit's behavior when the input is not actively driven. It ensures that the input signal is not left floating and helps avoid undefined or incorrect logic levels. Pull-up and pull-down resistors are commonly used in electronic circuits, including microcontroller and digital communication interfaces like I2C or SPI.

Conclusion

Pull-up and pull-down resistors are essential components in digital circuits. They play a crucial role in ensuring that input signals remain at a defined logic level when not being actively driven by an external source. By using pull-up resistors, signals are pulled to a high logic level when not driven low, while pull-down resistors pull signals to a low logic level when not driven high. This functionality helps in preventing floating signals and ensures reliable and predictable behavior within digital systems, making them fundamental for proper circuit operation.

What is a 10K resistor used for?

A 10K resistor is commonly used in various electronic circuits for different purposes. Here are some typical applications of a 10K resistor:

1. Voltage Dividers: The 10K resistor can be employed as one of the resistors in a voltage divider circuit. It helps to scale down voltages to desired levels by creating a proportionate voltage drop.

2. Pull-Up and Pull-Down Resistors: In digital circuits, a 10K resistor can be used as a pull-up or pull-down resistor. It ensures that the voltage level of an input signal remains stable by providing a default state for the signal when it is not actively driven.

3. Current Limiting: The 10K resistor can act as a current-limiting resistor, helping to restrict the amount of current flowing through a component or part of a circuit. It protects sensitive components from excessive currents.

4. Biasing: In amplifier circuits, the 10K resistor can be part of a biasing network used to establish the operating conditions of the amplifier stages. It helps to set appropriate voltage or current levels for transistors or operational amplifier inputs.

5. Timing Circuits: When combined with capacitors, the 10K resistor can be used in timing circuits, such as RC oscillators and time delay circuits. It affects the charging and discharging times of the associated capacitor, thus controlling timing intervals.

6. Sensor Biasing: Some sensors, including thermistors or light-dependent resistors (LDRs), require a biasing resistor to establish their operating points. A 10K resistor can be employed as a biasing resistor for such sensors.

These are just a few examples of how a 10K resistor can be used in electronic circuits. The specific application will vary based on the circuit requirements and the desired functionality.

Can use a 10k resistor instead of 4.7 K?

Yes, you can generally use a 10K resistor instead of a 4.7K resistor in many electronic circuits. The main difference between the two resistors is their resistance value, with the 4.7K resistor having a resistance of 4,700 ohms and the 10K resistor having a resistance of 10,000 ohms.

Using a 10K resistor instead of a 4.7K resistor will result in a higher resistance value in the circuit. This change in resistance may impact the overall circuit behavior, particularly in circuits that rely on precise resistor values for specific voltage levels, current flows, or timing intervals.

If the specific circuit requires a 4.7K resistance for proper operation or if the deviation from the desired resistance value would adversely affect the circuit's functionality, it is recommended to use a 4.7K resistor. However, in many cases, a 10K resistor can be an acceptable substitute without causing significant issues, especially in circuits with a higher tolerance for variation.

It's important to note that the choice of resistor value depends on the circuit design and the intended purpose. Therefore, if possible, refer to the circuit specifications or consult the circuit designer to ensure the appropriate resistor value is used.

What does a 10k resistor do in a circuit?

A 10k resistor, like any other resistor, serves various functions dependent on the specific circuit in which it is employed. Here are a few general functions a 10k resistor could fulfill within a circuit:

1. Voltage Division: When used in conjunction with another resistor, a 10k resistor can create a voltage divider. This allows for the scaling down of voltages to desired levels by creating a proportionate voltage drop.

2. Pull-Up and Pull-Down Resistor: In digital circuits, a 10k resistor can function as a pull-up or pull-down resistor. In doing so, it ensures that the voltage level of an input signal remains stable by providing a default state for the signal when it is not actively driven.

3. Biasing: In amplifier circuits, the 10k resistor can be part of a biasing network aimed at establishing the operating conditions of the amplifier stages. It can assist in setting appropriate voltage or current levels for transistors or operational amplifier inputs.

4. Current Limiting: The 10k resistor can limit the amount of current flowing through a specific part of a circuit. It protects sensitive components from excessive currents.

5. Timing Circuits: When paired with capacitors, a 10k resistor can be used in timing circuits, such as RC oscillators and time delay circuits. It affects the charging and discharging times of the associated capacitor, thus controlling timing intervals.

6. Sensor Biasing: Certain sensors, including thermistors or light-dependent resistors (LDRs), require a biasing resistor to establish their operating points. A 10k resistor can be used as a biasing resistor for such sensors.

The specific functions and roles of a 10k resistor within a circuit are determined by the circuit's design and operational requirements. Therefore, the purpose of the 10k resistor is context-dependent.

How do I know if I have a 10k ohm resistor?

To confirm if you have a 10k ohm resistor, you can use a multimeter, which is a versatile electronic instrument used for measuring various electrical parameters. The resistance measurement function of a multimeter can determine the resistance value of a resistor accurately.

Here's how you can check if you have a 10k ohm resistor using a multimeter:

1. Set your multimeter to the resistance (ohms) mode. This is typically denoted by the Ω symbol.

2. Make sure the resistor is not connected to any circuit or power source. Disconnect one end if necessary.

3. Touch the two leads of the multimeter across the resistor. It doesn't matter which lead goes where.

4. Read the resistance measurement displayed on the multimeter's screen. Ensure you account for the unit of measurement, which is ohms (Ω).

If the measured resistance value is close to 10,000 ohms (around 10k ohms), within the tolerance limit specified by the resistor, then you have a 10k ohm resistor. Take note that most resistors have a tolerance rating that indicates the allowable deviation from the specified resistance value. Typical tolerance values for resistors are ±5% or ±1%.

If the measured resistance differs significantly from 10k ohms or falls outside the acceptable tolerance range, then you likely have a resistor with a different resistance value.

What is the color code for 10K resistor?

The color code for a 10K resistor, using the standard 4-band resistor color code system, is:

Brown, Black, Orange, Gold

Each color band represents a specific digit or multiplier to determine the resistance value of the resistor. Let's break down the color code for a 10K resistor:

1st Band (1st significant digit): Brown 2nd Band (2nd significant digit): Black 3rd Band (Multiplier): Orange 4th Band (Tolerance): Gold

When you see a resistor with these color bands arranged in this order (reading from left to right), you can identify it as a 10K resistor. The resistance value of a 10K resistor is 10,000 ohms or 10 kilohms. The gold tolerance band indicates that the actual resistance can deviate by ±5% from the stated value.

Is 10K resistor good for LED?

A 10K resistor is generally not ideal for directly driving an LED. When working with LEDs, the goal is usually to limit the current passing through the LED to prevent it from burning out. The value of the resistor you would need to use in series with an LED depends on the specific LED and the voltage applied to it.

To calculate the resistor value for an LED, you can use Ohm's law, which states that the voltage across a resistor is directly proportional to the current passing through it. The general formula to use Ohm's law in this context is:

[ \text{Resistance (ohms)} = \frac{\text{Voltage (volts) - LED forward voltage (volts)}}{\text{Desired current (amps)}} ]

For example, let's say you have a standard LED with a forward voltage of 2 volts and a current rating of 20mA (0.02 amps), and you're powering it with a 5-volt source. Using the formula:

[ \text{Resistance (ohms)} = \frac{5V - 2V}{0.02A} = 150 \Omega ]

In this scenario, a 150 ohm resistor would be more appropriate to use in series with the LED to limit the current to 20mA.

If you've specifically thought about a 10K resistor for use with an LED, it could possibly be intended for a different purpose in the circuit, such as a pull-up or pull-down resistor in a control circuit rather than directly limiting LED current.

How much voltage does a 10K resistor drop?

The voltage dropped across a resistor depends on the current passing through it. Ohm's law defines the relationship among voltage (V), current (I), and resistance (R) as V = I * R.

If we assume a current of 1 mA (0.001 A) flowing through the 10K ohm (10,000 ohm) resistor using Ohm's law, we can calculate the voltage drop:

V = I * R V = 0.001 A * 10000 ohms V = 10 volts

Therefore, with a current of 1 mA, a 10K resistor will drop 10 volts.

This relationship is linear, so if the current increases or decreases, the voltage drop will also increase or decrease proportionally.

Are 10k Resistors And 1 K Resistors Both the Same?

10k resistors and 1k resistors are not the same. The 'k' in 10k represents 'kilo' and signifies a multiplication by 1000, whereas 1k represents an exact value of 1000 ohms.

The difference between these values lies in their resistance:

• A 10k resistor has a resistance of 10,000 ohms.
• A 1k resistor has a resistance of 1,000 ohms.

In electronic circuits, these different resistance values serve various purposes based on the requirements of the circuit design. It's essential to use the correct resistor value as specified in the circuit, as substituting one for the other could lead to incorrect circuit operation or may potentially damage the circuit components.
